Due to ammonia, the humidity inside the livestock building can corrode metal parts, which can create electrical hazards. It is highly recommended to use NEMA 4X-rated lighting fixtures to safeguard your farms. Please see the regulation from the following :
See the Ontario Ministry of Agriculture, Food and Rural Affairs recommendations
Every barn has different needs. It is necessary to understand farmers and their need to offer solution that balances between performance and welfare. These lighting products are designed after harsh testing, extensive research at various Universities across North America. We also provide lighting layout so that every lux is uniformly distributed across the farm. Please ask for NEMA 4x , DLC approved product suits able to broiler, layers, breeder barns
Lighting plays a significant role in reproductive and overall swine production performance. The cost of electricity for lighting is a small percentage of the cost of production for swine; however, it is possible to reduce energy costs, increase lighting levels and actually improve performance with well designed, energy efficient lighting systems. A good lighting system should provide proper light levels economically with low maintenance costs. We order lighting retrofit or new construction lighting fixtures suits to all different levels of swine production. Please ask for NEMA 4x , DLC certified fixtures suitable to your farrowing to finishing barn.
Our experts can offer lighting layout to make sure every lux is uniformly distributed across the farm.
Michigan State University has announced the results of a long-day lighting (LDL) research project at Wing Acres Dairy in Barry County, MI. Researchers from the school’s Biosystems and Agricultural Engineering Department worked with the Michigan Milk Producers Association (MMPA) to study the implications of LED-based LDL on milk production, and the study indicates an 8% increase over the course of a year.
By Maury Wright Editor in Chief, LEDs Magazine and Illumination in Focus
We also provide lighting layout so that every lux is uniformly distributed across the farm.
Please ask for NEMA 4x , DLC approved product for stall, parlor , milk room.
Electrical conduits are certified to CSA C22.2 No.211.2 and have been tested to CSA C22.2 No.211.0 for use in conduits as described in the Canadian Electrical Code. (MC 300381).
The ducts are also certified to FT4 (Vertical Flame Test) for fire resistance and also have been tested for resistance to aging by the sun (Sunlight Resistance) for outdoor installation.
Impact Resistance at -34⁰C , Compression, Chemical Resistance, Pullout on Coupled Conduit, Crush Resistance, Coupling Crush, Joint Tightness(pressure test) , Residual Stress at 121⁰C, Beam Strength, Boiling Water, Flattening Resistance at 110⁰C, Vertical Flame Test (FT4) for fire resistance, Weather resistance (Sun Res) for UV resistance, for Exterior installation
| Nominal diameter (inch / mm) | Model | External Diameter | Thickness | Standard Length (ft) | ||||
| Min (mm) | Max (mm) | Min (mm) | Max (mm) | |||||
| 1-1/2"/41mm | TABISC40XX112 | 47.95 | 48.57 | 3.68 | 4.11 | 10' or 20' long Including Bell-ends | ||
| 2"/53mm | TABISC40XX200 | 60.02 | 60.63 | 3.91 | 4.37 | |||
| 2-1/2"/63mm | TABISC40XX212 | 72.64 | 73.41 | 5.16 | 5.77 | |||
| 3"/78mm | TABISC40XX300 | 88.52 | 89.28 | 5.49 | 6.15 | |||
| 4"/103mm | TABISC40XX400 | 113.92 | 114.68 | 6.02 | 6.73 | |||

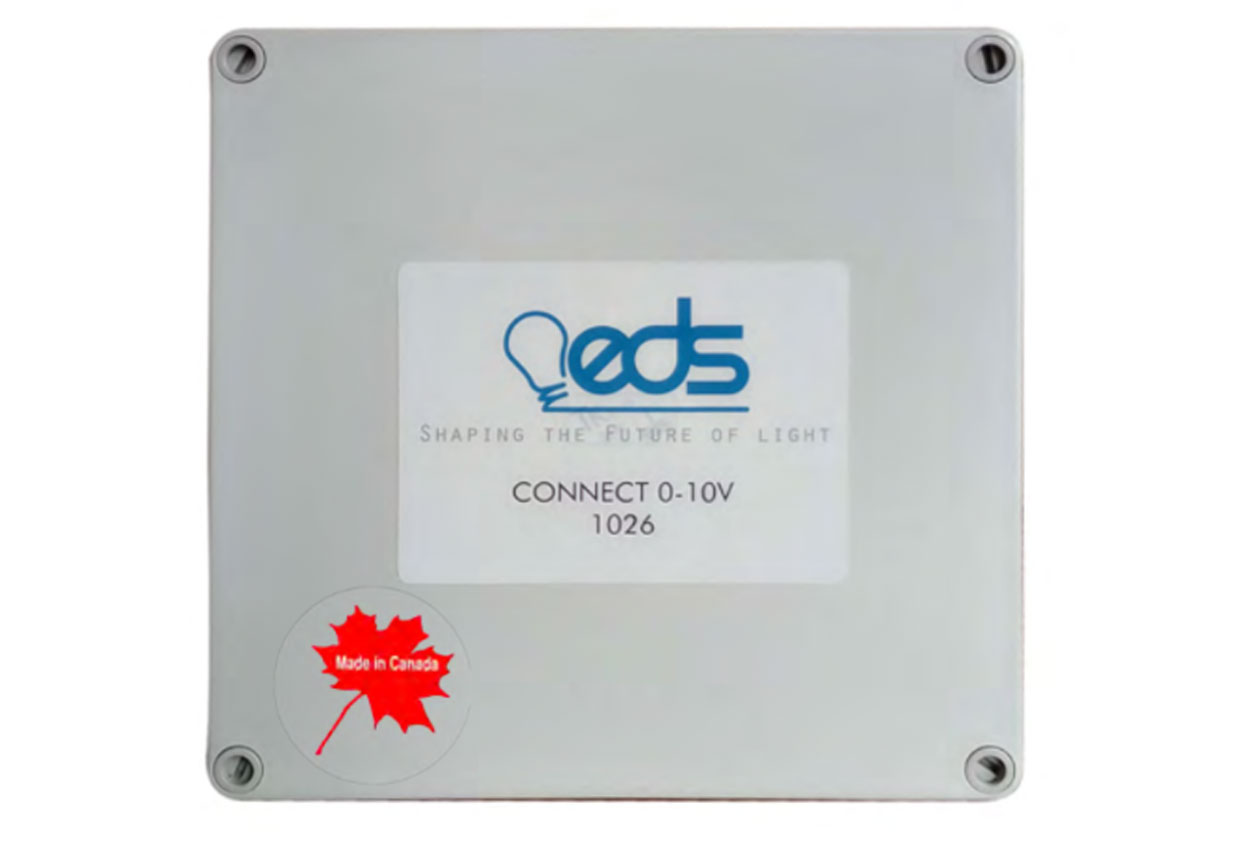

The LED technology is getting popular every day for commercial as well as residential lighting. Due to its popularity, the 0-10V dimming system is also getting much attention to control and maximize the light output of a LED fixture.
0-10V LED dimmer uses the DC voltage to control the output of the light fixture. This is one of the most straightforward and earliest lighting control systems. 0-10V dimming allows the smooth operation of light and dimming at the light level of 10%, 1%, and 0.1%. The first and simplest electronic lighting control signaling system, low voltage 0-10V dimmers use a low voltage 0-10V DC signal connected to each LED power supply or Fluorescent ballast. At 0 Volts the device will dim to the minimum light level allowed by the dimming driver, and at 10 Volts the device will be operating at 100%. A 0-10V dimmer is considered analog dimming, and all USAI 0-10V dimming options are considered to be “sink” type dimming.
This can control any lighting fixtures that takes 0-10V signal and dim these fixtures. Lowest cut off range is 1% ( results will vary depend on LED drives used ).
Bluetooth Wireless control

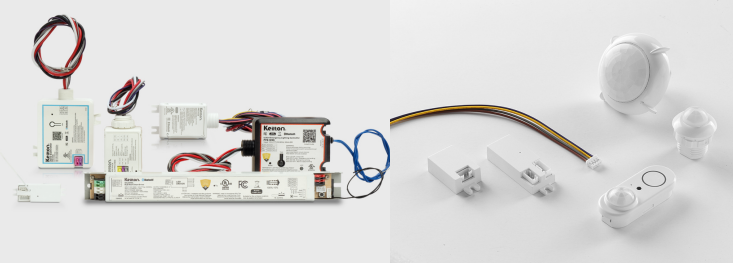

Wired sensors Spec Sheet
True versatility
Each and every one of the FLEX outputs is totally configurable.
Ventilation, Heating, Air inlet, Lighting, Timer…
Configure it to fit YOUR needs
The FLEX offers you:
1 triac variable output 6A
2 relay outputs 6A
4 variable 0-10V outputs
3 temperature sensors
1 outdoor temperature sensor
1 VOC sensor
These lighting fixtures are NEMA 4x and DLC certified, suitable for commercial and industrial applications. These are available with various voltage and Patented mounting options.
With Overdrive high bay, easy to modernize your commercial or industrial application, perfect replacement for HPS/metal halide lighting system. these are ideal for high ceiling in warehouses, manufacturing, grocery stores, farming industry or other indoor applications.
Overdrive launches new EH80 LED luminaire with multiple mounting options to meet wide range of lighting applications. The product is ETL listed and suitable for indoor and outdoor use where it is exposed to harsh environment and is wet location approved.
